FOR LARGE PIPE SIZES

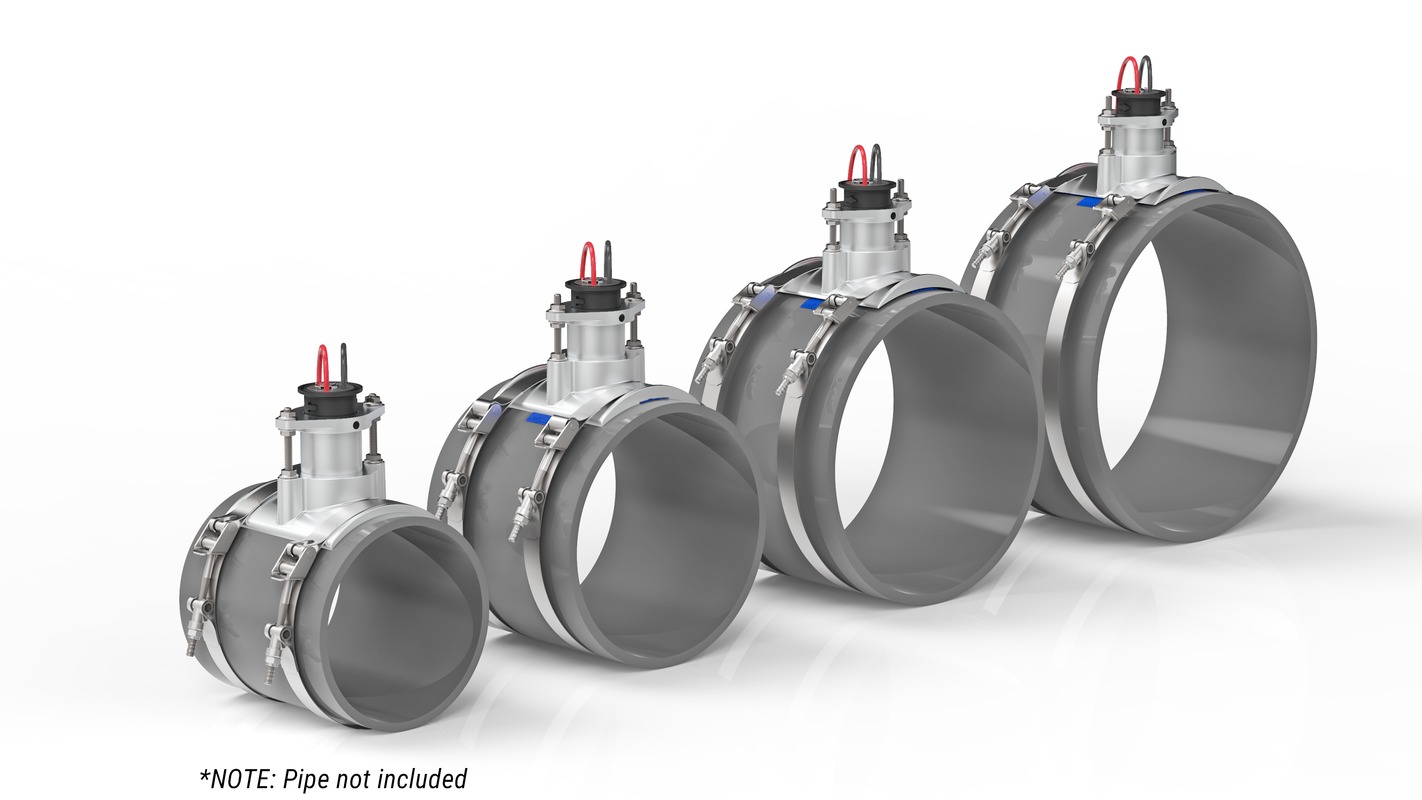

The 6, 8, 10, and 12-inch saddles are designed exclusively for the QS200 Insertion Ultrasonic Flowmeter. Supporting commercial and agricultural irrigation applications on large size pipes, the QS200 will accurately provide the information your controller needs to display the flow rate and accumulated total.

QS200 INSERT

Designed for above and below grade applications, such as irrigation, municipal and underground monitoring where the flow rates are between 0.1 to 15 fps (0.03 to 4.6 m/s) and temperatures are below 140° F (60° C). QS200 inserts are supplied with two single conductors, 18 AWG solid copper wire leads that are 36 inches (914.4 mm) in length with UL Style 116666 direct burial insulation.

technology-image
  • Advance Technology and simplicity
  • Protection Structure IP 65
  • Low-cost, effective, and easy installation
  • No moving mechanical parts (low-maintenance)
  • Simple two-wire connector (for power and pulse)
  • Compatible with irrigation controllers (common name brands)
  • High accuracy: ± 2.0% of reading (compared to full-scale accuracy)
  • Provides extended leak detection down to 0.1 fps (0.03 m/s)
  • LED light indicators: (green for power and amber for pulse)
  • Patented design (QS200)
  • Ideal for clean water flow measurement
  • External wiring: (direct burial wire)
  • Advance Technology and simplicity
  • Protection Structure IP 65
  • Agriculture Irrigation
  • Turf | Landscape Irrigation Systems
  • Micro Irrigation Systems
  • Groundwater Monitoring
  • Sub-Metering Applications:
    • High Rise Tenant Buildings
    • Apartment Complex
    • Universities
    • Commercial Businesses
    • Processing Facilities
